How to make the repair on bottle jack
Release valve rod、Piston Rod、Piston core leakage repair step
Leakage from Release Valve Rod
Unscrew the release valve rod
counterclockwise and take out the steel ball out
Replace the O-ring and add
grease at the seal
Put the steel ball in and tighten the
release valve rod counterclockwise;
Test for 24 hours (leak detection)
Leakage from piston rod
b. Check the O-ring and washer if damaged, replace it.
a. Remove the steel wire off
d.After completion, turn upside down for 24 hours to detect leakage
C. Add lubricating grease after replacing the O-ring and install it back in sequence
Leakage from pump core
a. Remove the pump core pin
b. Pull out the pump core and check it
c. Replace the pump core seal assembly 1#or, if the pump core is seriously worn, replace it with new O-ring 2#
d. Add lubricating grease on O-Ring of pump core, a insert the pump core into the pump body
e. Do a loading test to see if the pump core is working well
Product Parameters

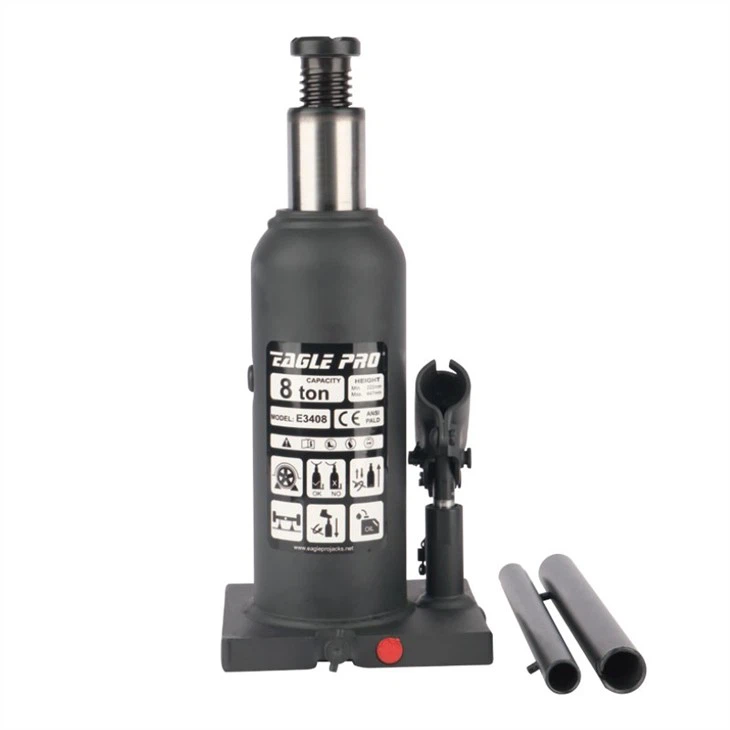

Product Name | 8 Ton Hydraulic Bottle Jack |
Brand | Eagle pro |
Product Type | Hydraulic Welded Bottle Jack |
Model Number | E3408F |
Capacity | 8ton |
Min.Height | 222mm/8.74In. |
Max.Height | 447mm/17.60In |
Base Size | 125*110mm |
Screw Height | 80mm |
Net weight/Gross weight | 5.0kg/5.3kg |
Package Size | 287*277*257mm |
QTY/CTN | 4PCS |
QTY/20’CY | 3300 |
FAQ
Q: Do you offer OEM service and can you produce as our drawings?
A: Yes. We offer OEM service. We accept custom design and we have a professional design team who can design products based on your requirements. And we can develop new products according to your samples or drawing.
Q: Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
Q: Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
Q: Are there any special requirements for OEM purchases?
A: Yes, we require proof of trademark registration in order to print or emboss your trademark onto the product or packaging.
